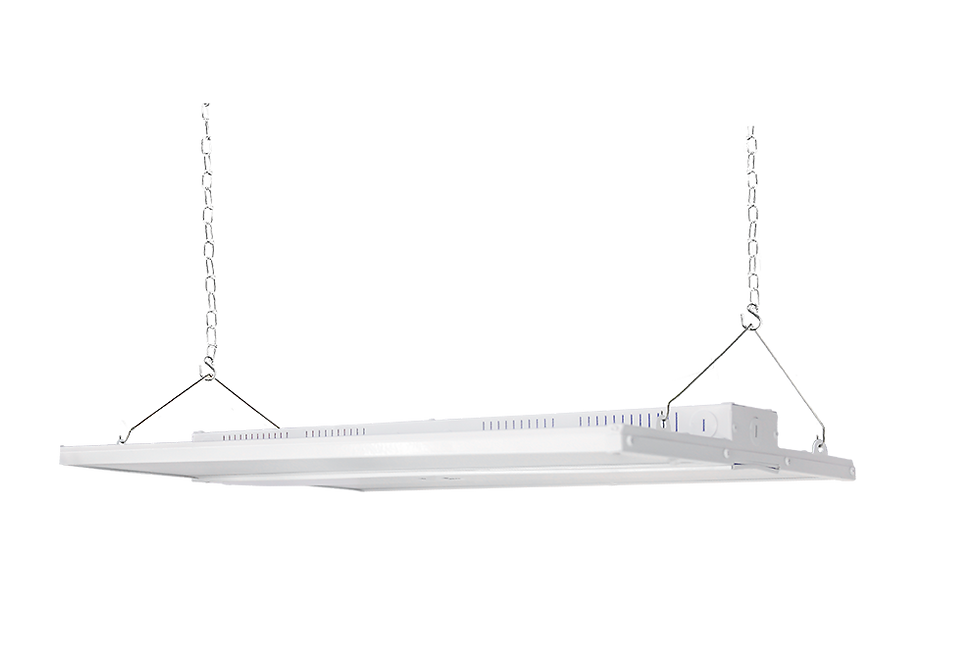

LED Linear High Bay

LED Linear High Bay

AVOVO LED Linear High Bay luminaries are designed for a wide variety of applications and mounting heights while providing premium performance, quality and versatility. With up to 60% lower energy consumption compared to traditional fluorescent and HID fixtures, the AHB series is ideal for high ceilings in warehouses, manufacturing facilities, gymnasiums, and retail applications.


    • Compact, lightweight design for ease of installation.
    • Housing made with cold forged steel in white polyester powder coating.
    • Standard PC lens provide added protection and glare control.
    • 135 lm/W LED provides high efficacy and energy efficiency.
    • Color temperatures available: 4000K and 5000K.
    • Top quality drivers: 0-10V dimming, flicker free.
    • Microwave & PIR sensor is also available.
    • Ideally suited for suspension mounting.

    Model No. Size Watts CCT (K) Lumens (130 lm/w) Input
    ALH12-165W-XXXXK-HV 1 x 2 feet 165W 4000K,5000K 21400 lm AC100-347V
    ALH22-220W-XXXXK-HV 1½ x 2 feet 220W 4000K,5000K 28600 lm AC100-347V
    ALH14-165W-XXXXK-HV 1 x 4 feet 165W 4000K,5000K 21450 lm AC100-347V
    ALH14-225W-XXXXK-HV 1 x 4 feet 225W 4000K,5000K 29250 lm AC100-347V
